In Sentinel, several column headers offer the ability to filter data according to specified criteria. This is indicated by the filter icon on the column header.
Note: A filtered column has an opaque filter; other filter icons are clear.
To open the filter box, click the filter icon of a column header.
The filter box offers the following options:
Select All: All available options for this column are listed here. You can choose the Select All option, or you can select individual options from the list.
Show rows with value that: This section allows you to type a character or number to compare with the values in the filter column.
Note: If a column contains characters, the text box is followed by an alphabet icon. For case-sensitive matching, click on the alphabet icon. If there is no alphabet icon, type a number into the text box.
There are three optional fields to complete:
Comparison 1
Select a comparison operator from the first drop-down list, directly below Show rows with value that. For example, Is equal to, Starts with, Ends with, and so on.
Type a comparison in the first text box.
Select And or Or, if you want to compare two values.
Comparison 2
Select a comparison operator from last drop-down list. For example, Is equal to, Starts with, Ends with, and so on.
Type a comparison in the second text box.
Filter: To apply the selected filters and options, click the Filter button.
Clear Filter: To clear the selected filters and options, click the Clear Filter button.
Close the filter: To close the filter box, click the Close button at the top right.
Sorting Columns
Many of the columns in the Sentinel data grids can be sorted in ascending or descending order.
To sort by a column, click the column header to toggle through the various options:
Click once to sort ascending.
Click twice to sort descending.
Click three times to remove sorting.
Grouping by a Column in a Grid
In Sentinel, some of the grids have a grouping capability. For example, in the View Events screen you can group by a column header for the following columns:
Monitor
Asset
Entity
State
Severity
Test
Grouped columns allow you to organise the contents of the grid more easily. For example, if you group by Asset, each different asset has a single row in the grid, which you can expand to view the different rows (or groups) within that asset.

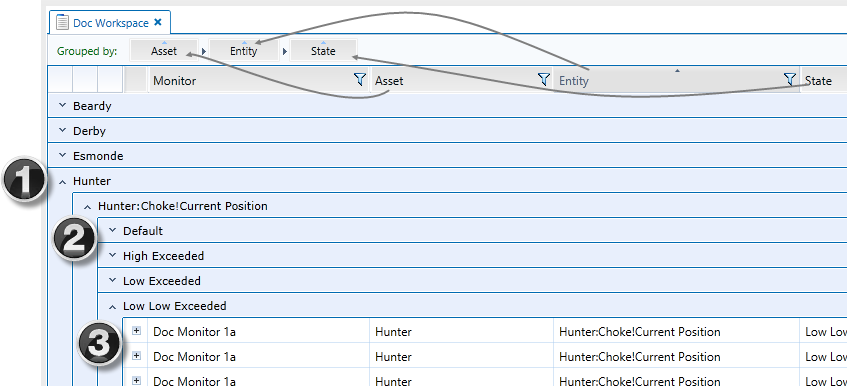

In the screenshot below, you can see groupings of Asset, Entity and State. The groupings are nested in the same order that they appear in the grid header panel, with (Asset) forming the outermost group, (Entity) showing the middle group, and (State) showing the inner group. Within the inner group, items appear with full details.
To group by a column header, click and drag the column header to the grid header (labelled Grouped By).
To expand a grouped section, click the Expand, downward-pointing arrow.
To collapse a grouped section, click the Collapse, upward-pointing arrow.
To remove a grouping, hover over the relevant column grouping button on the header panel that you want to remove, and click the Close icon that appears.
To re-order a column grouping, click and drag a column header button in the table header section, then release it in the new position. This changes the hierarchy of groupings in the grid.
Selecting a Date and Time
To select a date and time:
1. Click the calendar icon next to a date edit box.
A date and time (clock) panel opens.
Note: Where only a time is required, only the Clock panel is shown.
2. In the Calendar panel, click a date to select it.
Click the right arrow on the header to go forward a month.
Click the left arrow on the header to go back a month.
The selected date is highlighted.
Note: The current date is outlined.
3. In the Clock panel, click a time to select it.
4. Click Close.
The date and time panel closes, and the selected date and time appear in the date-time box.
For time selections only, the time is displayed in the time box.
Selecting an Open Tab
When you are on a tab in the Main panel, you may navigate to any other open tab in the Main panel.
To navigate to another tab:
1. Click the down-arrow icon on the upper right of the Main panel.
A list of all open tabs is displayed.
2. In the list, click the tab that you want to view.
The following icons indicate the type of tab that may appear in the list:
The Events tab, for workspaces, folders, and monitors
Monitor tab
Monitor status tab
Asset report tab
Hierarchy report tab, Event report tab and Event History report tab
Event timeline report tab
Pending approvals tab
Licence tab
Closing Tabs
To close tabs (pages) that are open in the Main panel:
1. Right-click on a tab header.
The following menu is displayed:
2. Click on one of the menu options:
Click Close tab to close the selected tab.
Click Close other tabs to close all tabs except the selected tab.
Click Close tabs to the right to close all tabs displayed to the right of the selected tab.
Click Close all to close all tabs in the Main panel.
Moving Tabs
On the Main tab, you can organise the ordering of open pages, by moving page tabs to the left.
1. Click the tab that you want to move.
2. Drag it (from right to left) to the new position.
3. Release the mouse button.
Monitor Panels
Expanding and Collapsing Panels
The monitor page, for adding or editing monitors, and the test page, for adding and editing tests, are both made up of many different panels. The different panels can be collapsed when they are not used, and expanded again when needed.
The expand icon / collapse icon is located on the upper left of each panel on a test or monitor page.
If the panel is expanded, the collapse icon is shown.
If the panel is collapsed, the expand icon is shown.
Collapse a Panel
To collapse a panel, click the collapse icon.
The panel collapses to display only the panel title.
Expand a Panel
Click the expand icon.
The panel expands to display the full panel.
Panel Comments
Many of the Sentinel panels have a comment box, where you can annotate why, for example, you have chosen to use the process, precondition, action, and so on, that you have used. If a panel has a comment box, this is depicted by a comment button on the upper right of the panel.
For example, the Precondition and the Process panels on the test screen each have a comment button (as shown in the screen image below).
If comments have already been added, the comment button is preceded by a panel comments counter button; the number on the button displays the number of separate comments for that panel.
Comment button on the Precondition panel of a test.
Comment button on the Process panel of a test.
A panel comments counter icon, in this example indicating that there are already two comments for the precondition panel of this test. Note: This button only appears if there are already comments for this panel.
To add or view comments, click the comment button, or click the comment counter button.
The panel comment window appears, with a title that includes the panel name.
The screen image below depicts the comment panel for a trigger. (In this example, the title is: 'Trigger' comments).
Comment text box
Save comment button
Open and close comment panel button
Comment history list
Any existing comments appear in the comment history list, with the most recent comment listed at the top.
To add a new comment:
1. In the Comment text box, type a short comment explaining your choice of component.
2. Click the Comment button.
The comment is saved, with a time stamp and your user name. This is displayed in the comment history list.
The comment text box is cleared.
3. Continue to add comments using this method.
To close the comment panel, click the comment button, or any part of the Sentinel screen (apart from the comment panel itself).
The number of comments, displayed in the panel comments counter icon, is incremented by the number of comments just added.
Note: Panel comments cannot be edited or deleted.
Report Hairlines
Report hairlines allow you to pinpoint an exact time on a graph.
In Sentinel, the following graphs have a hairline:
The Event Timeline section of the Statistics report, in the Asset report.
The Event Timeline section of the custom Event Timeline report.
The Timeline report, in Asset Reports.
To use the hairline in any of these reports:
1. Hover the mouse over the plot area of the graph (anywhere between the two axes), or in the magnifying pane of the time slider.
A fine, dashed line appears on the graph, vertically aligned to the tip of the cursor.
Alongside the dashed hairline is a text box, displaying the exact date and time (to the nearest second) of that point on the graph.
2. Move the mouse back and forth along the graph until you have the time you are interested in, or until you reach a point of interest (such as an event, for example).
In the preceding screen image, the hairline highlights a point on the graph where the date and time is: 30/11/2012 3:10:40 AM.
3. For the timeline report: to zoom into a period, click the hairline and drag it to the left or right, highlighting a section of the graph, then release the mouse button at your new start (if dragging to the left) or end time (if dragging to the right). The highlighted section of the graph replaces the original selection. To zoom back out to the original timeline, click Refresh, or Refresh to Now on the tab header bar.
Sentinel Status
The Sentinel status icon is located on the lower right of the Main panel. If the system currently has any warning messages, the status icon flashes on and off intermittently.
If there are any warnings, the total count is displayed as a number on the icon.
To see the current status of Sentinel, click Status.
Sentinel Engine CPU usage, as well as Sentinel status, Reporting Engine status and Explorer online status are displayed in the status window.
To close the Status window, click away from the Status window.
Warning Messages
Warnings are shown on the status panel, as follows:
Warning icon: The warning icon shown for warning messages
Date and time: The date and time the message was created
Message: The message content
My Tasks
My Tasks is a panel containing a list of various tasks. Every user has their own list of tasks; this list depends on which tasks have been assigned to the user, and can be empty.
Note: Users may share tasks, for example where several users have approver privileges for a particular workspace which contains monitors awaiting approval.
The Tasks panel consists of the following:
Heading: Tasks for [user.name].
List of tasks: A list of tasks that the user can address.
Change Management Tasks
A change management task contains details of monitors awaiting approval. Every user has their own list of change management tasks, and this list depends on their approver privileges for the various workspaces, as well as on the monitors that are awaiting approval. The list can be empty.
Note: A change management task may appear in the task list of more than one user.
A change management task appears as follows:
User name: The name of the user who submitted the monitor for approval.
Time: The date and time that the monitor was submitted for approval.
Description: A description of the task, including the monitor name, for example, Approve or reject submission - Monitor 'Doc Monitor 5'.
Sentinel Navigation

ON THIS PAGE:
Filtering & Sorting
In Sentinel, several column headers offer the ability to filter data according to specified criteria. This is indicated by the filter
icon on the column header.
Note: A filtered column has an opaque filter; other filter icons are clear.
The filter box offers the following options:
Select All: All available options for this column are listed here. You can choose the Select All option, or you can select individual options from the list.
Show rows with value that: This section allows you to type a character or number to compare with the values in the filter column.
Note: If a column contains characters, the text box is followed by an alphabet
icon. For case-sensitive matching, click on the alphabet icon. If there is no alphabet icon, type a number into the text box.
There are three optional fields to complete:
Filter: To apply the selected filters and options, click the Filter button.
Clear Filter: To clear the selected filters and options, click the Clear Filter button.
Close the filter: To close the filter box, click the Close
button at the top right.
Sorting Columns
Many of the columns in the Sentinel data grids can be sorted in ascending or descending order.
To sort by a column, click the column header to toggle through the various options:
Grouping by a Column in a Grid
In Sentinel, some of the grids have a grouping capability. For example, in the View Events screen you can group by a column header for the following columns:
Grouped columns allow you to organise the contents of the grid more easily. For example, if you group by Asset, each different asset has a single row in the grid, which you can expand to view the different rows (or groups) within that asset.
In the screenshot below, you can see groupings of Asset, Entity and State. The groupings are nested in the same order that they appear in the grid header panel, with
(Asset) forming the outermost group,
(Entity) showing the middle group, and
(State) showing the inner group. Within the inner group, items appear with full details.
Selecting a Date and Time
To select a date and time:
1. Click the calendar
icon next to a date edit box.
A date and time (clock) panel opens.
Note: Where only a time is required, only the Clock panel is shown.
2. In the Calendar panel, click a date to select it.
The selected date is highlighted.
Note: The current date is outlined.
3. In the Clock panel, click a time to select it.
4. Click Close.
The date and time panel closes, and the selected date and time appear in the date-time box.
For time selections only, the time is displayed in the time box.
Selecting an Open Tab
When you are on a tab in the Main panel, you may navigate to any other open tab in the Main panel.
To navigate to another tab:
1. Click the down-arrow
icon on the upper right of the Main panel.
A list of all open tabs is displayed.
2. In the list, click the tab that you want to view.
The following icons indicate the type of tab that may appear in the list:
Closing Tabs
To close tabs (pages) that are open in the Main panel:
1. Right-click on a tab header.
The following menu is displayed:
2. Click on one of the menu options:
Moving Tabs
On the Main tab, you can organise the ordering of open pages, by moving page tabs to the left.
1. Click the tab that you want to move.
2. Drag it (from right to left) to the new position.
3. Release the mouse button.
Monitor Panels
Expanding and Collapsing Panels
The monitor page, for adding or editing monitors, and the test page, for adding and editing tests, are both made up of many different panels. The different panels can be collapsed when they are not used, and expanded again when needed.
The expand icon / collapse icon is located on the upper left of each panel on a test or monitor page.
Collapse a Panel
The panel collapses to display only the panel title.
Expand a Panel
The panel expands to display the full panel.
Panel Comments
Many of the Sentinel panels have a comment box, where you can annotate why, for example, you have chosen to use the process, precondition, action, and so on, that you have used. If a panel has a comment box, this is depicted by a comment
button on the upper right of the panel.
For example, the Precondition and the Process panels on the test screen each have a comment button (as shown in the screen image below).
If comments have already been added, the comment button is preceded by a panel comments counter
button; the number on the button displays the number of separate comments for that panel.
Comment button on the Precondition panel of a test.
Comment button on the Process panel of a test.
A panel comments counter icon, in this example indicating that there are already two comments for the precondition panel of this test. Note: This button only appears if there are already comments for this panel.
The panel comment window appears, with a title that includes the panel name.
The screen image below depicts the comment panel for a trigger. (In this example, the title is: 'Trigger' comments).
Comment text box
Save comment button
Open and close comment panel button
Comment history list
Any existing comments appear in the comment history list, with the most recent comment listed at the top.
To add a new comment:
1. In the Comment text box, type a short comment explaining your choice of component.
2. Click the Comment
button.
The comment is saved, with a time stamp and your user name. This is displayed in the comment history list.
The comment text box is cleared.
3. Continue to add comments using this method.
The number of comments, displayed in the panel comments counter
icon, is incremented by the number of comments just added.
Note: Panel comments cannot be edited or deleted.
Report Hairlines
Report hairlines allow you to pinpoint an exact time on a graph.
In Sentinel, the following graphs have a hairline:
To use the hairline in any of these reports:
1. Hover the mouse over the plot area of the graph (anywhere between the two axes), or in the magnifying pane of the time slider.
A fine, dashed line appears on the graph, vertically aligned to the tip of the cursor.
Alongside the dashed hairline is a text box, displaying the exact date and time (to the nearest second) of that point on the graph.
2. Move the mouse back and forth along the graph until you have the time you are interested in, or until you reach a point of interest (such as an event, for example).
In the preceding screen image, the hairline highlights a point on the graph where the date and time is: 30/11/2012 3:10:40 AM.
3. For the timeline report: to zoom into a period, click the hairline and drag it to the left or right, highlighting a section of the graph, then release the mouse button at your new start (if dragging to the left) or end time (if dragging to the right). The highlighted section of the graph replaces the original selection. To zoom back out to the original timeline, click Refresh, or Refresh to Now on the tab header bar.
Sentinel Status
The Sentinel status icon is located on the lower right of the Main panel. If the system currently has any warning messages, the status icon flashes on and off intermittently.
If there are any warnings, the total count is displayed as a number on the icon.
Sentinel Engine CPU usage, as well as Sentinel status, Reporting Engine status and Explorer online status are displayed in the status window.
Warning Messages
Warnings are shown on the status panel, as follows:
Warning icon: The warning
icon shown for warning messages
Date and time: The date and time the message was created
Message: The message content
My Tasks
My Tasks is a panel containing a list of various tasks. Every user has their own list of tasks; this list depends on which tasks have been assigned to the user, and can be empty.
Note: Users may share tasks, for example where several users have approver privileges for a particular workspace which contains monitors awaiting approval.
The Tasks panel consists of the following:
Heading: Tasks for [user.name].
List of tasks: A list of tasks that the user can address.
Change Management Tasks
A change management task contains details of monitors awaiting approval. Every user has their own list of change management tasks, and this list depends on their approver privileges for the various workspaces, as well as on the monitors that are awaiting approval. The list can be empty.
Note: A change management task may appear in the task list of more than one user.
A change management task appears as follows:
User name: The name of the user who submitted the monitor for approval.
Time: The date and time that the monitor was submitted for approval.
Description: A description of the task, including the monitor name, for example, Approve or reject submission - Monitor 'Doc Monitor 5'.
