Alarm

The Alarm process tests continuous data (Temperature) against high limits (H and HH) and low limits (L and LL).

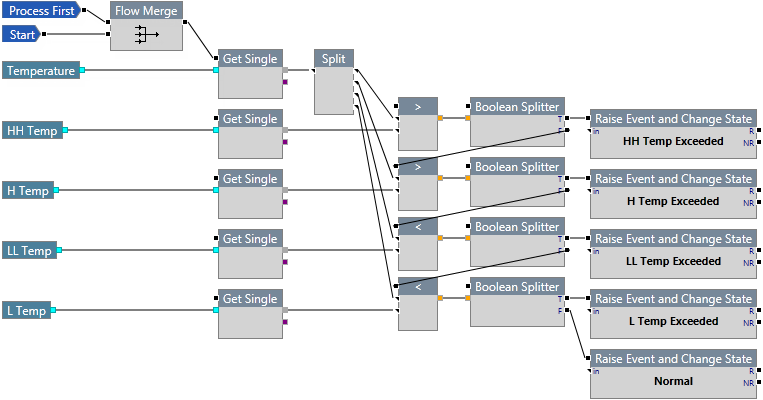

Logic Editor

UI Editor

Since the inputs are derived from IFS OI Explorer entities, these must be configured in the Sentinel monitor test. The UI Editor shows how the layout could be configured. The entry fields are added automatically, but the labels must be added in Sentinel Studio.
